Imx317 4k FHD 8mp Usb Camera Module For Security Surveillance

Name: Imx317 4k FHD 8mp Usb Camera Module For Security Surveillance
Brand: Sinoseen
Price: 1 USD

Imx317 4k FHD 8mp Usb Camera Module For Security Surveillance Manufactures

Brand Name : Sinoseen

Model Number : SNS-DZ1009-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/2.5"SONY IMX317

Resolution : 8MP (3840*2160)

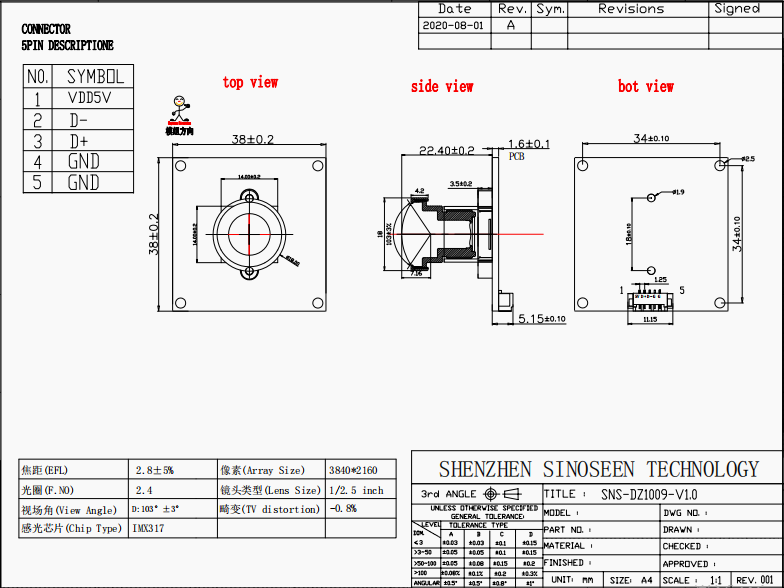

Dimensions : 38mmx38mm,(customizable)

Lens FOV : 90°(optional)

Focus Type : Fixed focus

Interface : USB2.0

Feature : 4K

Contact Now

OEM 8MP SONY IMX317 4K FHD USB Camera Module for Security Surveillance Face Recognition

8MP 4K 30FPS USB2.0 Camera Module

This is an 8 megapixel (MP) USB camera module designed for security and surveillance applications. It features 4K Full HD resolution for crisp, detailed images and integrates easily with a variety of systems using the USB interface.
The module features advanced image processing capabilities, including automatic exposure, white balance, and noise reduction, ensuring high-quality images even in low-light conditions. It also has a wide dynamic range, which enables it to capture images with a high level of detail in both bright and dark areas.
The module's compact design and low power consumption make it suitable for a wide range of applications including security cameras, video conferencing systems, A.ND industrial automation. It is also easy to install and use, with plug-and-play capabilities and combinations with various operating systems.

Specification:FHD Camera Module

Model No	SNS-DZ1009-V1.0
Sensor	1/2.5’’ SONY IMX317 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.62µm x 1.62µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in

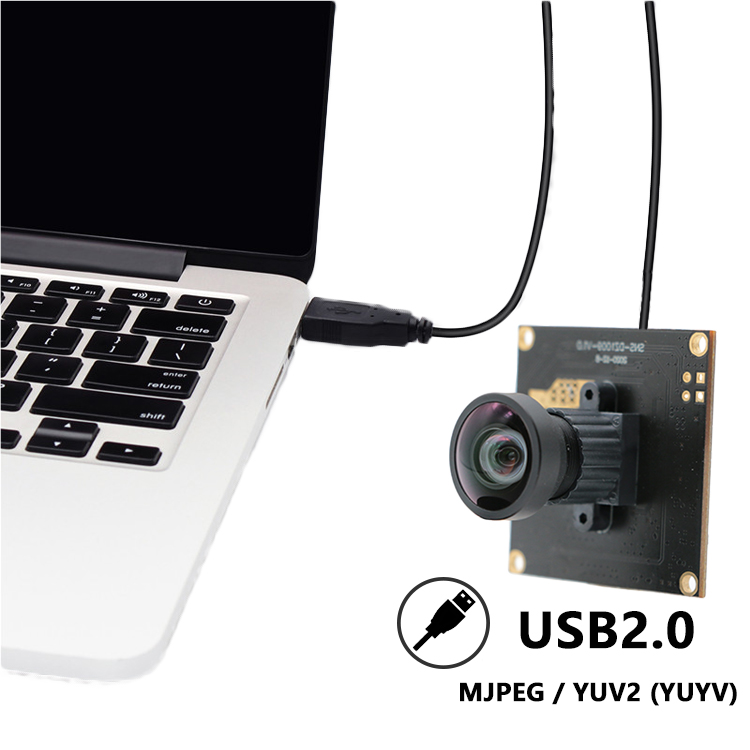

Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Lens construction: 5E+IR
	H FOV: 90 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	38MMx38MM (32MMx32MM)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
