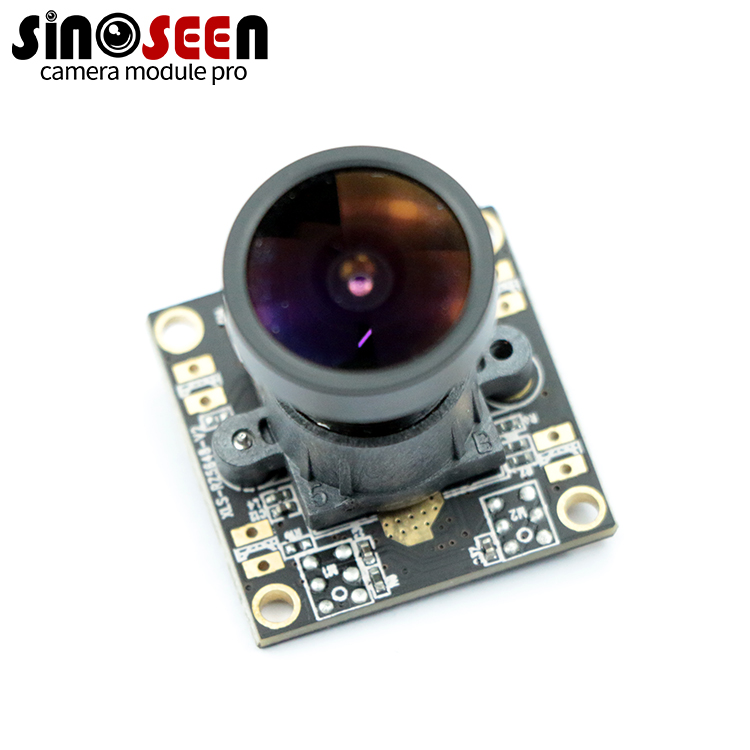

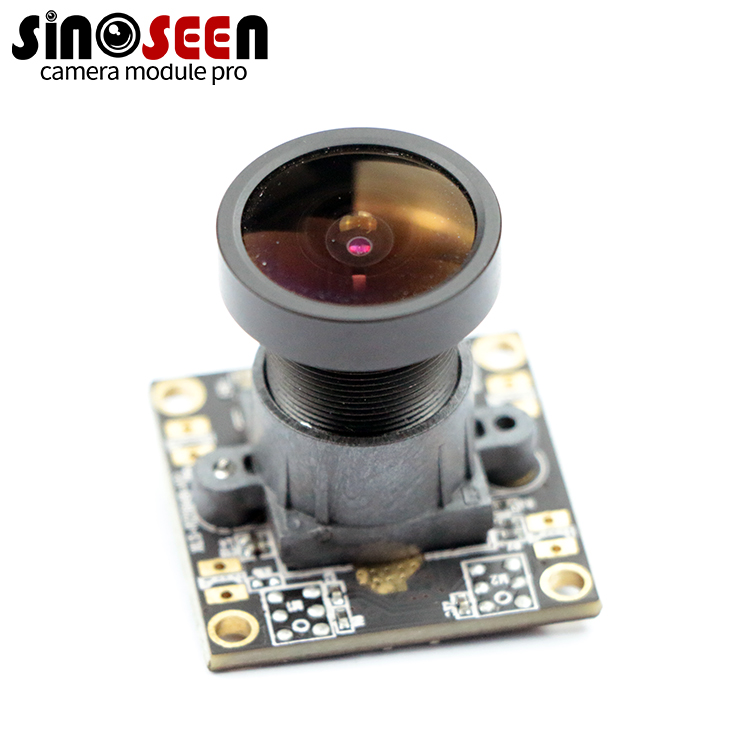

Low Power Consumption 0.3MP USB Camera Module With GalaxyCore GC0308 Sensor

Brand Name : Sinoseen

Model Number : SNS-0.3MP-GC0308-S1

Certification : RoHs

Place of Origin : Shenzhen,China

MOQ : 200

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/ 6.5" GalaxyCore GC0308

Resolution : 0.3MP (640*480)

Dimensions : 30mmx25mm(customizable)

Lens FOV : 60°(optional)

Focus Type : Fixed focus

Interface : USB2.0

Feature : Low power consumption

Contact Now

Low Power Consumption 0.3MP USB Camera Module With GalaxyCore GC0308 Sensor

0.3MP USB Camera Module​

This is one of our hot selling USB camera modules, it is 0.3MP/VGA (860*640) resolution with GalaxyCore GC0308 sensor, quality is good and stable. This module has 2 important features: Low power consumption and low cost.
To make sure it consumes as less power as possible, we don't put LEDs, microphones or some other components, it consumes only about 70mW power consumption.
Also, this is one is the lowest cost USB camera modules. We have strong partnership with our sensor supplier & other components suppliers, and we have the know-how to make quality as high as possible, cost as low as possible.
This module can be used in many applications, like desktop PC cameras, electronic toys, robotics, computer vision, machine vision,industrial, power supply, digital still cameras and camcorders, video telephone and conferencing equipments, security systems, bar code reader, QR (quick response) code, ticket gate and many others

Specification
Model No
SNS-0.3MP-GC0308-S1
Sensor
1/ 6.5’’ GalaxyCore GC0308
Pixel
0.3 Mega Pixel
Most effective pixels
640 (H) x 480 (V)
Pixel Size
3.4µm x 3.4µm
Compression format
YUY2 ONLY
Resolution & Frame rate
640x480@30fps;
352x288@30fps;
320x240@30fps;
176x144@30fps;
160x120@30fps;
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
S/N ratio
49dB
Dynamic range
55dB
Sensitivity
3300mV/Lux-sec
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Audio frequency
Optional
Lens FOV
Default 60° (Optional)
Lens Thread Size
M12*P0.5 (Optional)
Power supply
USB BUS POWER
Power consumption
DC 5V, 70mW
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
NOT Support
Auto White Balance (AEB)
NOT Support
Auto Gain Control (AGC)
NOT Support
Dimension
30mm x 25mm
Storage temperature
-30°C to 80°C
Operating temperature
0°C to 60°C
USB cable length
Default
Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
