Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality

Name: Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality
Brand: Sinoseen
Price: 1 USD

Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality Manufactures

Brand Name : Sinoseen

Model Number : SNS-SM1118-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : 1/3’GC2083 CMOS

Resolution : H1920*V1080

Dimensions : (customizable)

Pixel Size : 2.7um x2.7um

Focus Type : Fixed Focus

Interface : USB

Feature : HD

Contact Now

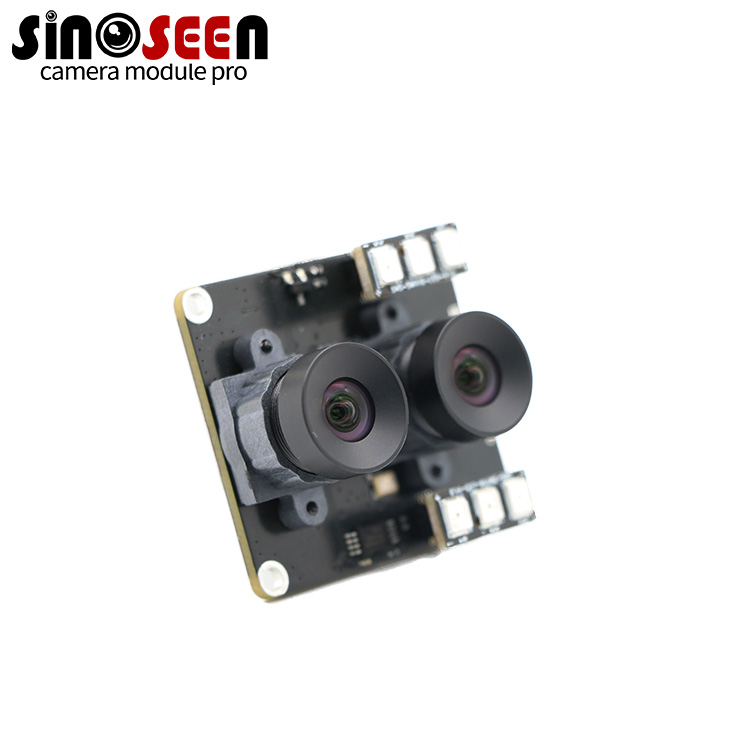

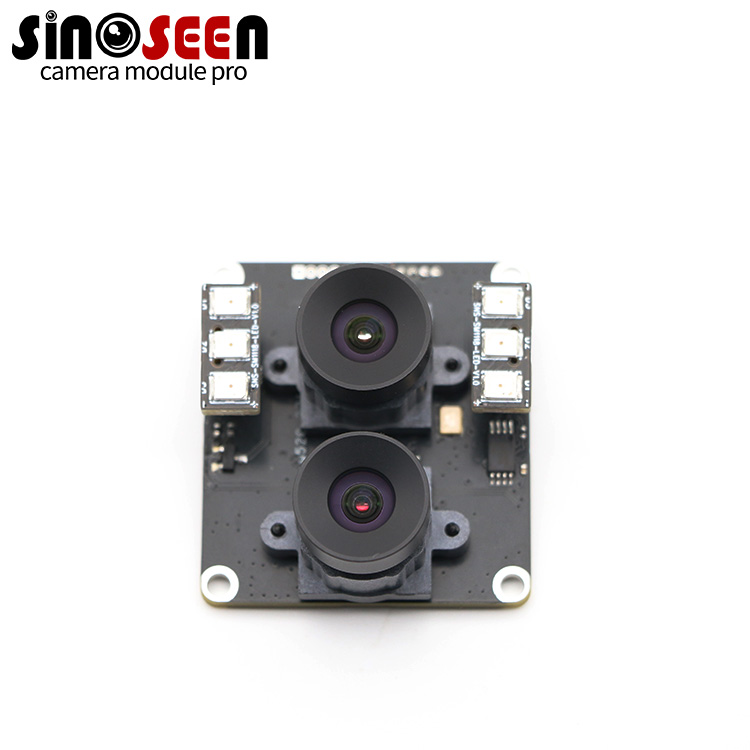

2MP Dual Lens Camera Module With Fill Light And USB Interface For Enhanced Functionality

2MP USB Camera Module

The camera module's dual-lens design includes two separate lenses, each with its own sensor. This configuration allows images to be captured simultaneously or independently, providing the flexibility to capture different perspectives or apply different effects. The inclusion of a fill light in the camera module improves image quality in low-light environments. Fill light provides additional illumination to ensure your subject is well-lit, reducing shadows and increasing visibility. This feature is particularly useful in applications such as video conferencing, live streaming, or low-light photography.
USB interface allows easy connection to host devices. The USB interface provides a convenient and widely compatible connection method, allowing the camera module to be easily integrated into various devices such as computers, laptops, tablets or embedded systems.
The combination of dual lenses, fill light, and USB port provides enhanced functionality and flexibility for capturing images and video. It delivers higher image quality in challenging lighting conditions and integrates seamlessly with a variety of devices.

Specification

Model No	SNS-SM1118-V1.0
Sensor	1/3’GC2083 CMOS
Pixel	2 Mega Pixel
Most effective pixels	H1920*V1080
Pixel Size	2.7um x2.7um
Image Area	5808µm x 3288µm
Compression format	YUV2 / MJPG
Resolution	See above
Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	TBDdB
Dynamic range	TBDdB
Sensitivity	3700 mV/lux-sec
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Power supply requirement	AVDD28: 2.7~3.3V(Typ.2.8V)
	DVDD18: 1.15~1.3V(Typ.1.2V)
	IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency	Optional
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Storage temperature	0~60℃
Operating temperature	-20~80℃
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
