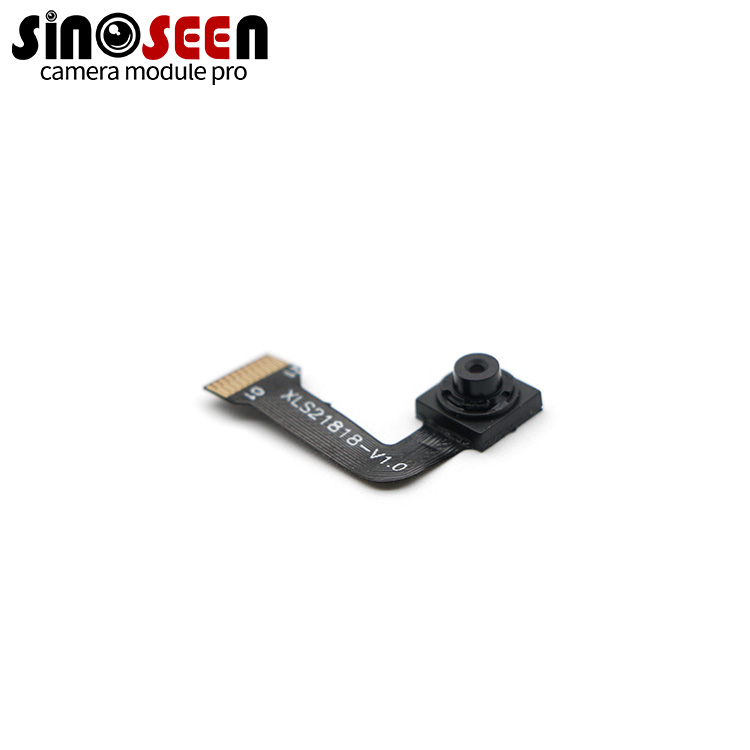

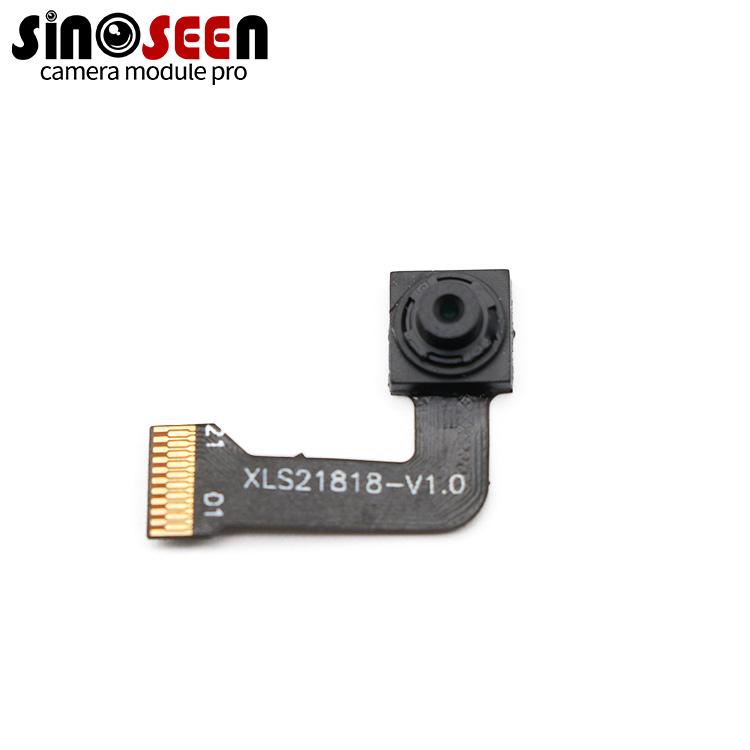

MIPI Interface 2MP Camera Module With Fixed Focus Lens For Fast And Stable Data Transfer

Name: MIPI Interface 2MP Camera Module With Fixed Focus Lens For Fast And Stable Data Transfer
Brand: Sinoseen
Price: 1 USD

MIPI Interface 2MP Camera Module With Fixed Focus Lens For Fast And Stable Data Transfer Manufactures

Brand Name : Sinoseen

Model Number : SNS21818-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 2MP camera module

Sensor : SP250 Sensor

Resolution : 1600*1200

Dimensions : (customizable)

Lens FOV : 100°(optional)

Focus Type : FF

Interface : MIPI

Feature : Low power consumption

Contact Now

**2MP Sensor MIPI Interface Fixed Focus 30 Frames 1600*1200 Camera Module**

2MP Camera Module

The MIPI interface 2MP camera module with fixed-focus lens is a camera module that integrates a 2-megapixel (2MP) image sensor and a fixed-focus lens. The MIPI interface is a standard communications interface widely used in mobile devices and other applications to connect cameras, sensors, and other peripherals to the main processing unit. It provides high-speed data transmission and efficient control signals for seamless integration with host devices. The camera module's 2MP resolution means it can capture images with a higher level of detail than lower-resolution sensors. A fixed focus lens means that the camera module has a fixed focal length, that is, it is set to focus on objects at a specific distance and does not support the autofocus function. This type of lens is typically used in applications where the focal length is known and constant, allowing for simpler designs and faster image capture. By combining a 2MP image sensor, fixed-focus lens and MIPI interface, this camera module provides a solution for applications requiring high-quality image capture and fast and reliable data transfer. It can be used in a variety of devices such as smartphones, tablets, industrial cameras, barcode scanners, and other applications that require stable and efficient imaging.

Specification

Parameter	Typical value
Optical Format	1/5inch
Active pixel array	1920*1080
Pixel Size	1.65um*1.65um
Shutter type	Electonic rolling shutter
ADC resolution	10 bit ADC
Max Frame rate	30fps@full size
Power Supply	AVDD28:2.8V
	DVDD:1.2V
	IOVDD:1.8V
Power Consumption	TBD
SNR	TBD
Dark Current	TBD
Sensitivity	TBD
Dynamic range	TBD
Operating temperature:	-20°C to 80°C
Stable Image temperature	0°C to 60°C
Optimal Lens chief ray angle(CRA)	12(linear)
Package type	CSP
Input clock frequency	6-27MHz
