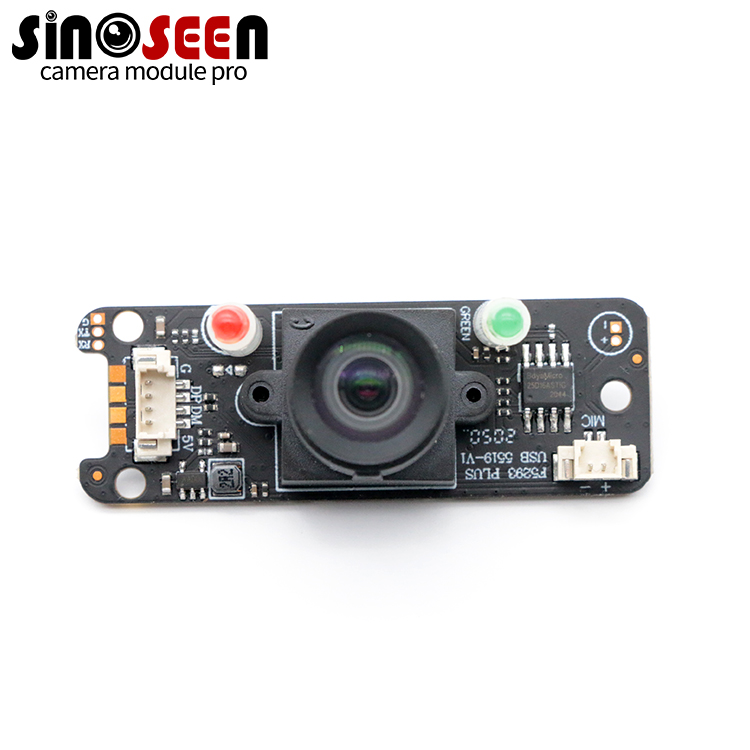

5MP Camera Module with OV5640 for Video Surveillance Video Conference

Name: 5MP Camera Module with OV5640 for Video Surveillance Video Conference
Brand: Sinoseen
Price: 1 USD

5MP Camera Module with OV5640 for Video Surveillance Video Conference Manufactures

Brand Name : Sinoseen

Model Number : SNS-5MP-OV5640-TTP

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 5mp camera module

Sensor : 1/4'' Omnivision OV5640 CMOS

Resolution : 5MP 2592 (H) x 1944 (V)

Dimensions : (customizable)

Lens FOV : 80°(optional)

Focus Type : Fixed Focus

Interface : USB2.0

Feature : high sensitivity

Contact Now

5MP Usb Camera Module 1/4 Inch High Sensitivity HD With OV5640 Sensor.

Hot Selling 1/4 Inch High Sensitivity HD 5MP Usb Camera Module With OV5640 Sensor.

HD 5MP OV5640 Camera Module

Features:

Features high sensitivity and low power consumption

The maximum resolution is: 2592 (H) x 1944 (V)

Used in high-definition photography, video surveillance, video conference all-in-one, video teaching, Internet of Things, aerial drones, QR code recognition and other fields

If you need to customize your own module, we can customize all parameters such as size, lens angle, etc. according to your requirements

Specification

  	 			Model No 			SNS-5MP-OV5640-TTP
 			Sensor 			1/4’’ Omnivision OV5640 CMOS
 			Pixel 			5 Mega Pixel
 			Most effective pixels 			2592 (H) x 1944 (V)
 			Pixel Size 			1.4µm x 1.4µm
 			Image area 			3673.6μm x 2738.4μm
 			Compression format 			YUYV/MJPEG
 			Resolution & Frame rate 			See above
 			Shutter Type 			Electronic rolling shutter
 			Focus type 			Fixed focus
 			Object distance 			5CM-infinity
 			S/N ratio 			36dB
 			Dynamic range 			68dB
 			Sensitivity 			600mV / lux-sec
 			Interface type 			USB2.0 high speed
 			Adjustable parameter 			Brightness/Contrast/Color saturation/Hue
 			Definition/White balance/Exposure
 			Lens FOV 			80°
 			Power supply 			USB BUS POWER
 			Power consumption 			DC 5V, 150mA
 			Main chip 			DSP/SENSOR/FLASH
 			Auto Exposure Control 			Support
 			Auto White Balance 			Support
 			Auto Gain Control 			Support
 			Dimension 			(customizable)
 			Storage temperature 			-20°C to 70°C
 			Operating temperature 			0°C to 60°C
 			USB cable length 			Default 0.5M
 			Support OS 			WinXP/Vista/Win7/Win8/Win10
 			Linux with UVC(above linux-2.6.26)
 			MAC-OS X 10.4.8 or later
 			Android 4.0 or above with UVC
