Fixed Focus USB Iris Camera Module 2592*1944 Pixels Omnivision OV5640 Sensor

Brand Name : Sinoseen

Model Number : SNS-PC293-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/4"Omnivision OV5640

Resolution : 5MP (2592*1944)

Dimensions : 62mmx9mm(customizable)

Lens FOV : 60°(optional)

Focus Type : Fixed focus

Interface : USB2.0

Feature : HD

Contact Now

Fixed Focus USB Iris Camera Module 2592*1944 Pixels Omnivision OV5640 Sensor

Fixed Focus 5MP Facial Recognition USB Camera Module With Omnivision OV5640 Sensor

USB Camera Module​
This is our newly developed 5MP USB camera module with Omnivision CMOS sensor OV5640. OV5640 is a 5MP chip that is widely used and recognized by customers. It can output a resolution of up to 2592x1944. The picture quality is excellent and stable.

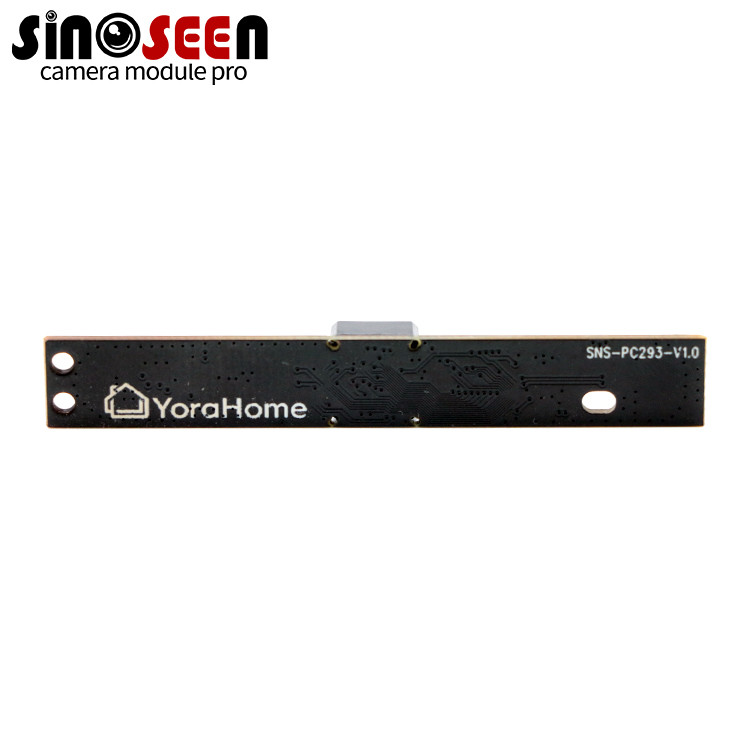

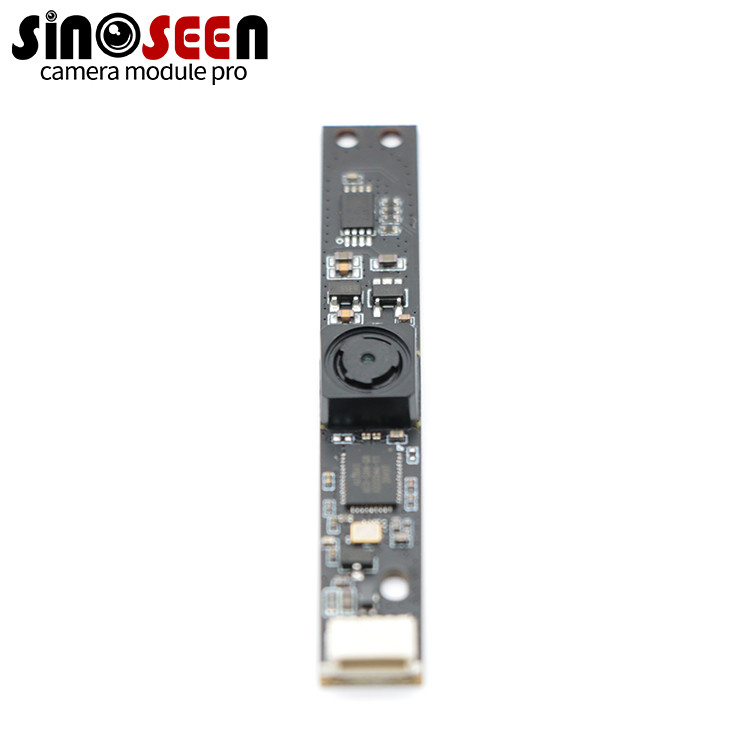

In this face recognition USB camera module, we made the PCB board into a size of 62mmx9mm according to the customer's needs, and chose an ordinary 60-degree fixed-focus lens according to the customer's shooting distance and the area of the picture that needs to be shot.
If you have similar needs, we can also customize the size of the PCB board according to your actual needs, choose the appropriate lens angle, and print your logo.


Specification

Model No

SNS-PC293-V1.0

Pixel Size

1.4μm x 1.4μm

Effective Pixels

HD 2592(H)X1944(V)

Image Sensor

1/4"

AEC/AWB/AGC

Supported

Lens View

FOV60°(Optional),F/N(Optional)

Interface

USB BUS POWER 5P-1.0mm

Operating Voltage

DC5V

Working Current

120mA~220mA

Dimension

62X9mm

Cable Length

1m/1.5m
