Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Product Categories
Shenzhen Sinoseen Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Brand Name : Sinoseen

Model Number : SNS-2MP-OS02C10-M1

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : MIPI camera module

Sensor : 1/2.8" Omnivision OS02C10

Resolution : 2MP 1920x1080

Dimensions : customizable

Lens FOV : 160°

Focus Type : Fixed focus

Interface : MIPI CSI4

Feature : Fisheye lens

Contact Now

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

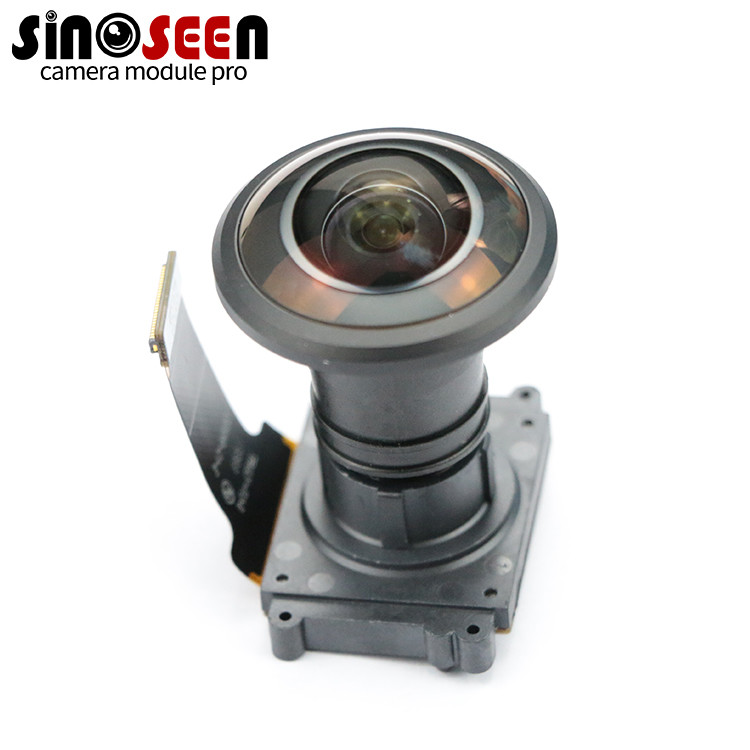

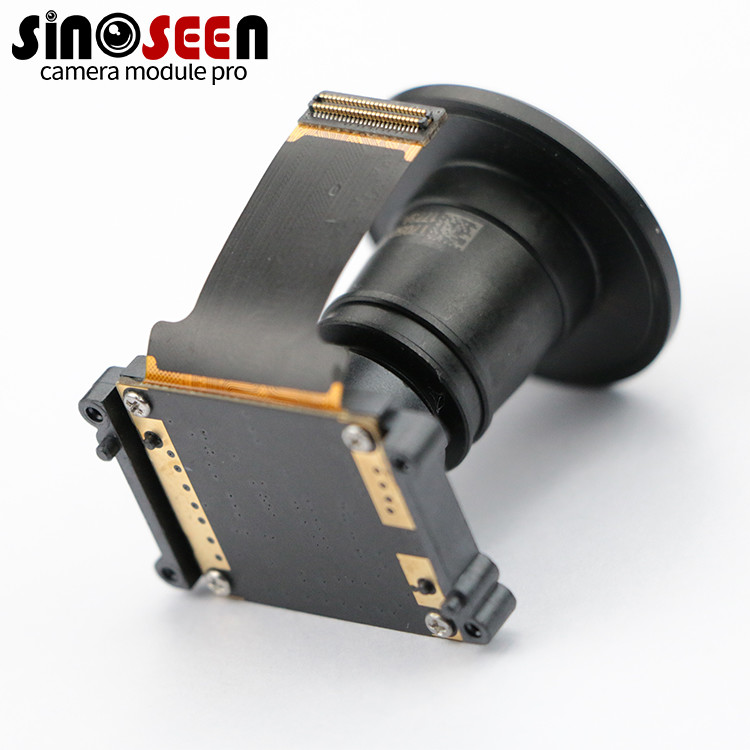

Fisheye Lens Fixed Focus HDR High Dynamic Range MIPI CSI4 Camera Module With Omnivision Sensor OS02C10

MIPI Camera Module

This is a fisheye lens fixed focus HDR MIPI camera module with sensor OS02C10 from Omnivision,OS02C10 is a very good sensor widely used in security camera,action camera and high resolution consumer camera.

Specification

Model No

SNS-2MP-OS02C10-M1

Sensor

1/2.8" Omnivision OS02C10

Pixel

2MP

Most effective pixels

1920x1080

Pixel Size

2.9 µm x 2.9 µm

Min illumination

530nm

Compression format

MJPG / YUY2

Resolution & Frame rate

40X3 fps @ 1080p in 10-bit

30X3 fps @ 1080p in 12-bit

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio

TBDdB

Dynamic range

TBDdB

Sensitivity

32,000 e- /Lux-sec

Interface type

MIPI

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Lens FOV

160°

Audio frequency

Support

Power consumption

DC 5V, 100mA

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

-30°C to 85°C

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Fisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 SensorFisheye Lens CSI4 MIPI Camera Module High Dynamic Range OS02C10 Sensor

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Camera Module Application Areas

Imaging and vision solutions Integrated complex and customized technology
Machine vision Intelligent Systems
Future Security Optical technology solutions
Camera Module Customized solutions Internet of Things End-to-End Solution
Iris recognition technology Iris Solutions
Face recognition VR High End Camera Solutions
Smart home solutions Intelligent hardware solutions
Professional camera Modules Specially designed for small UAV
Airborne camera Modules UAV solutions
UAV Special Modules Drone solutions
Aerial filming solutions Optical Technology solutions
Mobile Phone Camera module Camera solutions
Optronics Solutions Imaging Technology Solutions
Video technology solutions Optoelectonic research
Infrared Imagers for Industry Embedded Systems solutions
