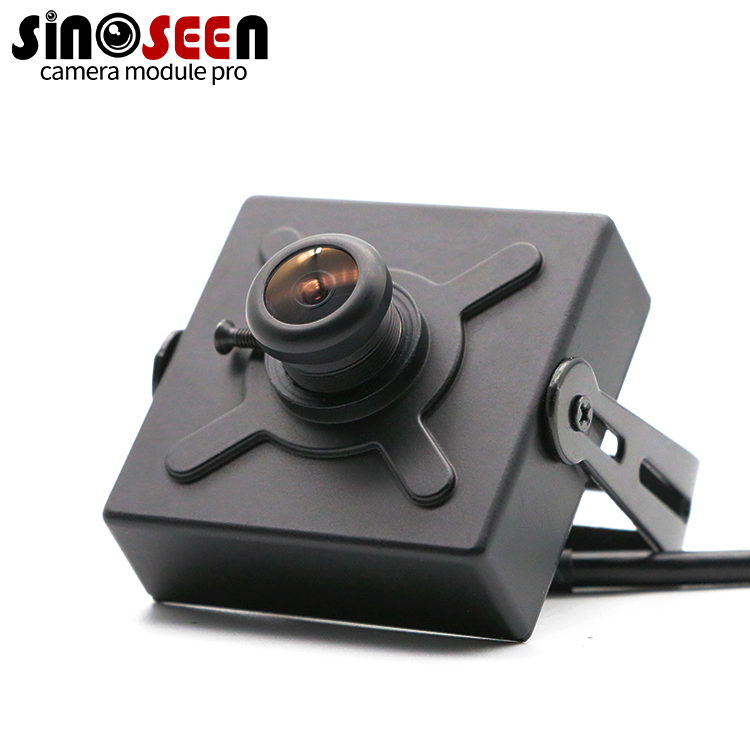

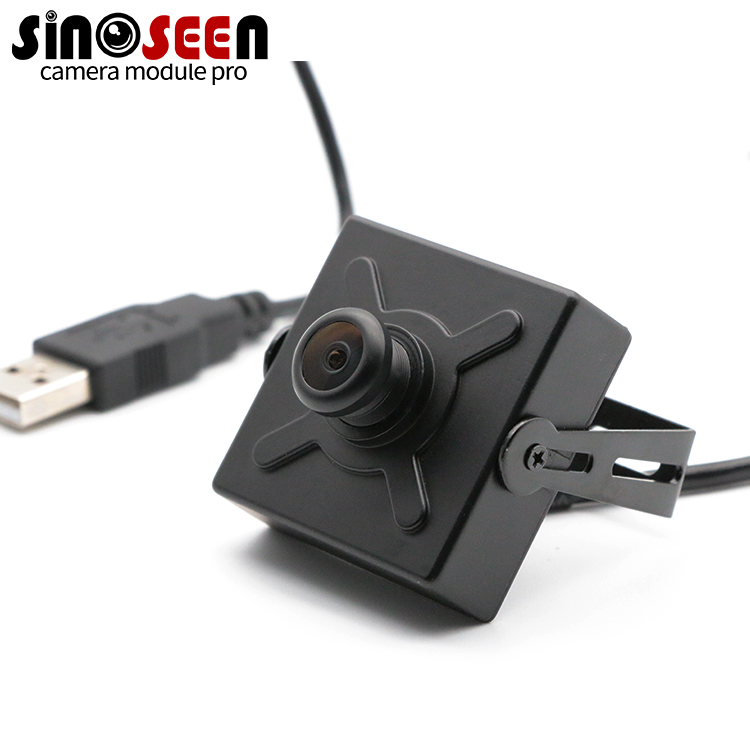

OEM 0.3MP 60fps USB 2.0 Camera Module With OV7725 Sensor

Brand Name : Sinoseen

Model Number : SNS-OV7725-1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : OV7725

Resolution : 0.3MP HD 640x480

Dimensions : customizable

pixel size : 6.0 µm x 6.0 µm

Focus Type : Fixed focus

Interface : USB2.0

Feature : Small FOV

Contact Now

Customized OV7725 0.3MP 640x480 camera high frame rate 60fps USB2.0 camera module

60fps USB camera module

This is a palm-sized controllable, scalable, low-cost machine vision development module SNS-OV7725-1.0. Integrate a variety of image processing algorithms to realize face recognition, shadow tracking, pupil tracking; this is an image sensor using the OV7725 camera chip, which is a low-voltage CMOS device. Captures 640×480 8-bit grayscale/16-bit RGB565 images at 60FPS, 320×240. The module can be used in mobile phones and picture mobile phones, toys, computer multimedia, digital cameras and other applications.

Specification

Module No

SNS-OV7725-1.0

Pixel Size

6.0 µm x 6.0 µm

Effective Pixels

HD 640 x 480

Video output

YUV2 MJPG

Active Array Size Video Rate

640x480 @30 fps 320x240 @ 30fps 240x180@ 30fps

Image Sensor

ov7725

SNR max

50dB

Dynamic range

60dB

OTG

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure

Lens total ray angle

25° nonlinear

Interface

USB BUS POWER 5P-1.25mm

Operating Voltage

DC5V

Operating Current

MAX120MMA

Operating temperature

-20°C +70°C

Storage temperature

-40°C +125°C

Cable length

Defualt

OS

WinXP/Vista/Win7/Win8

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

OEM 0.3MP 60fps USB 2.0 Camera Module With OV7725 Sensor

OEM 0.3MP 60fps USB 2.0 Camera Module With OV7725 Sensor

Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request

Current available USB solution

0.3MP

Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675

Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)

Global shutter:OV7251 (1/7.5”,B/W)

High frame rate:200FPS SC031GS(1/6”,B/W)

Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)

1MP

Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760

Small size for endoscope:OV9734 GC1009 HM1091

Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)

Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)

2MP

Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)

1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237

1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)

1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310

1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307

1080P-WDR (30FPS): AR0230 AR0331(300W)

1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290

1080P big size: IMX385

1080P global shutter: OG02B10(color) OG02B1B(B/W)

5MP

500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650

FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)

8MP

800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390

8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)

13MP-16MP

IMX214(13M) IMX258(13M) IMMX298(16M)

USB3.0

IMX335 OV5648 IMX179 IMX307 PS5268

H264

GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
