Color CMOSQSXGA 5MP OV5648 Sensor MIPI Autofocus Camera Module

Brand Name : Sinoseen

Model Number : SNS-DZ1018-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 3

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : USB camera module

Sensor : 1/4"Omnivision OV5648

Resolution : 5MP (2592*1944)

Dimensions : customizable)

shutter : Roller shutter

Focus Type : Auto Focus

Interface : USB2.0

Feature : HD

Contact Now

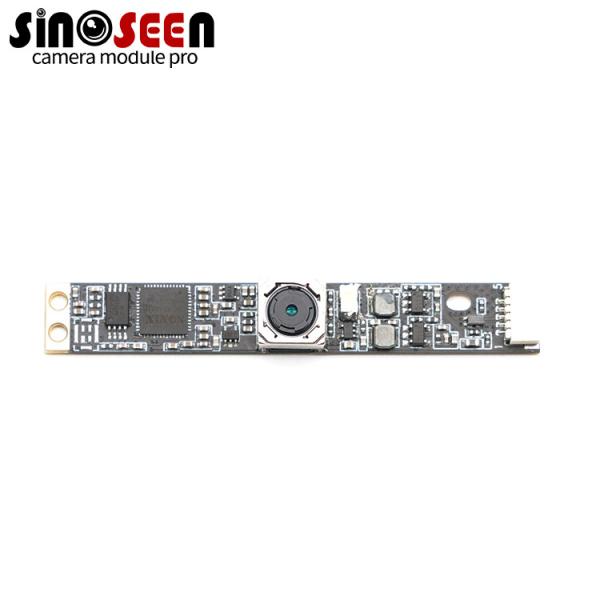

Color CMOSQSXGA 5MP OV5648 Image Sensor MIPI Autofocus Camera Module

5MP camera module

This is a 5MP MIPI mobile phone autofocus camera module, the image sensor is Omnivision's OV5648, and the OV5648 is a 1/4-inch color CMOS QSXGA image sensor. It produces very nice and stable images.
This product supports UVC protocol, auto focus, driver-free, plug and play, and supports Raspberry Pi and Jetson Nano. The small size makes it easy to install into a variety of devices.
Currently it comes with an 80 degree autofocus lens, you can replace it with another nt DFOV or any other fixed different DFOV
Used in mobile phones, toys, computer multimedia, digital cameras, all-in-one machines.
Regarding size and structure, you can also design according to your actual needs.

Specification

Model No

 SNS-DZ1018-V1.0

Sensor

1/4’’ Omnivision OV5648

Pixel

5 Mega Pixel

Most effective pixels

2592(H) x 1944(V)

Pixel Size

1.4µm x 1.4µm

Image area

3673.6µm x 2738.4µm

Compression format

MJPG/YUY2

Resolution & Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Auto Focus

S/N ratio

36dB

Dynamic range

72 dB @ 8x gain

Sensitivity

690mV / lux-sec

Interface type

USB2.0 high seepd

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 200mW

Main chip

DSP/SENSOR/FLASH

Auto Exposure Control (AEC)

Support

Auto White Balance (AEB)

Support

Auto Gain Control (AGC)

Support

Operating temperature

30°C to 70°C

USB cable length

Default

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Color CMOSQSXGA 5MP OV5648 Sensor MIPI Autofocus Camera Module

Color CMOSQSXGA 5MP OV5648 Sensor MIPI Autofocus Camera Module
