8mp Usb Camera Module With LED Fill Light

Name: 8mp Usb Camera Module With LED Fill Light
Brand: Sinoseen
Price: 1 USD

8mp Usb Camera Module With LED Fill Light Manufactures

Brand Name : Sinoseen

Model Number : SNS-DZ1041-V1.0

Certification : RoHS

Place of Origin : Shenzhen,China

MOQ : 5

Price : negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3weeks

Packaging Details : Tray+Anti-static bag in carton box

Type : 8mp camera module

Sensor : 1/3.2'' IMX179

Resolution : 3264(H) x 2448(V)

Dimensions : (customizable)

Lens FOV : 100°(optional)

Focus Type : Fixed focus

Interface : USB3.0

Feature : 4K

Contact Now

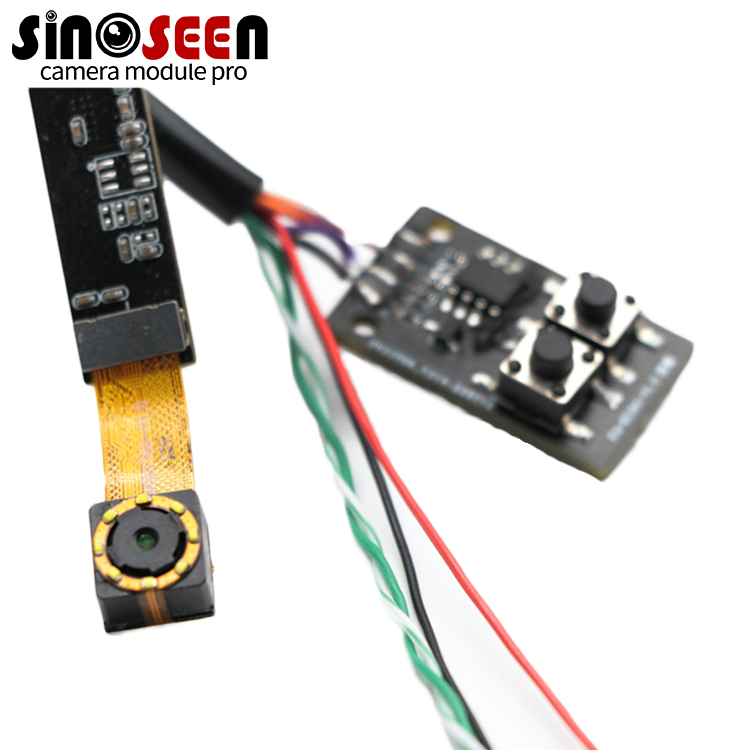

oem hd imx179 8mp usb camera module with LED fill light for industrial endoscopy

* 8 million pixels, using SONY IMX179 CMOS image sensor

* High quality image, high sensitivity, low power consumption, low current

* High resolution, max resolution 3264X2448

*With LED fill light, you can press the button to take pictures and change the imaging direction

*For industrial inspection and industrial endoscopy Highest Frame Rate - 30 fps at 1024*768 resolution

*UVC for Win XPWin7Win8AndroidLinuxMac OS

*Compliant with UVC standard, no driver, plug and play, support Linux, Android, Mac and Windows, OTG

Specification

Model No	SNS-DZ1041-V1.0
Sensor	1/3.2’’ IMX179
Pixel	8 Mega Pixel
Most effective pixels	3264(H) x 2448(V)
Pixel Size	1.4µm x 1.4µm
Compression format	MJPG / YUY2
Resolution	see above
Frame rate	see above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
S/N ratio	36dB
Dynamic range	60dB
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens Size: 1/3 inch
	FOV: 95° (Optional)
	Thread Size: M12*P0.5
Audio frequency	Support
microphone	Built-in
Power supply	USB BUS POWER
Power consumption	DC 5V, 200mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Not Supported
Dimension	90MM x 15MM (customizable)
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
